15U Wall Mount Cabinet 600×600 mm

15U Wall Mount Cabinet 600×600 mm – Complete Product Overview

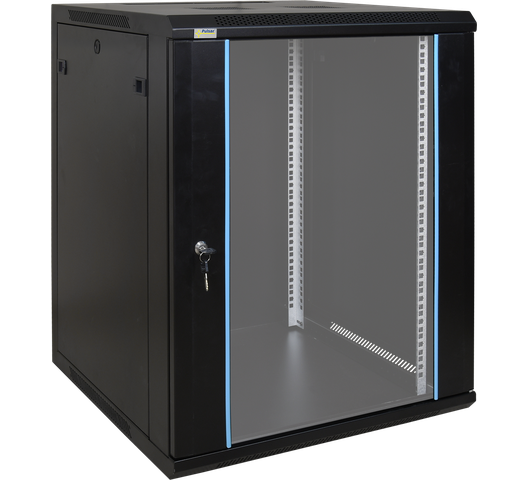

The 15U Wall Mount Cabinet 600×600 mm is a mid-sized, wall-mounted network enclosure designed for secure, organized, and efficient housing of IT and telecom equipment. With 15U of vertical rack space and a 600 mm depth, this cabinet strikes the perfect balance between space-saving wall mounting and the internal room needed to support deeper devices like switches, routers, patch panels, DVRs, and compact servers.

Whether you’re outfitting a small enterprise network, school telecom room, smart home hub, or branch office IT space, the 15U Wall Mount Cabinet 600×600 mm delivers the capacity, flexibility, and protection required for professional installations.

• Rack Height: 15U (~667 mm of usable vertical space)

• External Dimensions (W x D x H): 600 mm (W) × 600 mm (D) × ~800 mm (H)

• Internal Depth: 600 mm – ideal for deeper equipment

• Mounting Type: Wall-mounted with rear mounting bracket

• Material: Cold-rolled steel, black powder-coated finish (RAL 9005)

• Front Door: Lockable (tempered glass or perforated metal)

• Side Panels: Removable, with optional locking mechanisms

• Rear Panel: Solid steel frame for heavy-duty wall mounting

• Cable Entry: Top and bottom grommeted knockouts

• Ventilation: Perforated panels with fan tray mounting points

• Weight Capacity: Up to 80 kg (depending on wall anchors and mounting)

• Compliance: EIA-310-D (19” rackmount standard)

• Included Accessories: Cage nuts, mounting screws, grounding wire, wall bracket

1. Mid-Sized Rack Capacity

The 15U Wall Mount Cabinet 600×600 mm provides ample vertical space for most small to medium networking needs. It comfortably holds multiple patch panels, network switches, power distribution units (PDUs), and even a compact rackmount server or UPS.

2. 600 mm Depth for Device Compatibility

Compared to shallower wall cabinets (e.g., 450 mm), the 15U Wall Mount Cabinet 600×600 mm supports deeper hardware and allows adequate space for cable management at the rear. Ideal for gear with rear-facing power or fiber connections.

3. Secure, Lockable Design

This cabinet is built for protection. With a lockable front door and optional side panel locks, the 15U Wall Mount Cabinet 600×600 mm helps safeguard critical IT equipment in public or shared environments such as schools, offices, and retail spaces.

4. Strong Wall Mount Frame

A reinforced rear panel and wall-mounting bracket allow the 15U Wall Mount Cabinet 600×600 mm to securely support up to 80 kg when properly installed. It’s designed for concrete, brick, or solid wood wall mounting.

5. Superior Airflow Management

The top and bottom ventilation slots, along with the ability to install fan trays, allow the 15U Wall Mount Cabinet 600×600 mm to maintain passive or active cooling as needed, ensuring long-term reliability of enclosed electronics.

6. Cable Routing and Management

Rubber grommeted knockouts on the top and bottom provide easy, protected entry points for Ethernet, fiber, and power cables, reducing stress on connectors and keeping the setup tidy.

1. Small Office Networks

The 15U Wall Mount Cabinet 600×600 mm is ideal for centralizing routers, switches, and patch panels for small business or coworking networks, especially where floor space is limited.

2. Education Facilities

In schools and universities, this cabinet provides secure housing for AV equipment, wireless controllers, and structured cabling in classrooms or wiring closets.

3. Telecom Installations

Used for structured cabling and PBX systems in telecom rooms, the 15U Wall Mount Cabinet 600×600 mm provides adequate space and depth for structured cabling distribution.

4. Smart Homes & AV Systems

Smart home integrators choose this model for DVR/NVR systems, central routers, and control hubs in residential setups requiring more space than smaller 6U or 9U cabinets.

5. Security & Surveillance Networks

The 15U Wall Mount Cabinet 600×600 mm is perfect for storing IP camera NVRs, PoE switches, and backup batteries for surveillance systems in retail, warehouse, or office settings.

1. Mounting Surface: Always install the cabinet on a strong load-bearing wall (e.g., concrete, brick). Use heavy-duty wall anchors or bolts.

2. Load Balance: Heavier items (e.g., UPS or server) should be mounted in the lower rack units for stability.

3. Cooling: Consider installing optional fan trays for enclosed, high-load configurations.

4. Cable Management: Use vertical or horizontal cable managers, brush panels, and labeling for clean setup and easier maintenance.

5. Grounding: Always attach the grounding wire to reduce static discharge and ensure safety compliance.

• 1U or Dual-Fan Units: For enhanced airflow and heat management

• Fixed or Sliding Shelves: For non-rackmount gear (modems, tools, etc.)

• Rack-Mount PDUs: Distribute power within the enclosure

• Blank Panels: Cover unused space and guide airflow

• Cable Managers & Brush Panels: For neat cable routing

• Vertical Mount Rails: For additional mounting flexibility

• Castor Sets: Optional for floor or table mounting applications

The 15U Wall Mount Cabinet 600×600 mm delivers a versatile, space-saving, and secure solution for mid-sized IT, AV, and telecom installations. With enough depth to support full-size devices and enough height to manage scalable networks, this cabinet strikes the right balance for a wide range of applications.

Whether used in corporate environments, small server rooms, or smart homes, the 15U Wall Mount Cabinet 600×600 mm ensures durability, flexibility, and professional presentation of your critical equipment. From cable management to cooling and security, it’s a reliable foundation for any network buildout.
